- sqs Super Quick Spiral flute technology for rapid spoil relief
- SDS+ shank and facetted carbide tip bring sqs flute technology to
hammer action drilling - ‘Stubby’ length with a depth-stop for consistent drilling depths
- Specially developed for use in harder masonry materials such as
concrete and engineering brick - Designed, engineered and manufactured in Sheffield, UK
Impact Masonry Plus
Buy Now
Click here to find your local stockist.
| Diameter | Flute Length |
Overall Length |
Application Examples & Brand |
Part Number | |
| 4.0mm | 45mm | 100mm | • D-Line – DFIX-P • Linian – Nano Clip • SWA – Firefly masonry screws |
IMP04.0 |  |
| 5.0mm | 45mm | 100mm | • Yellow plugs • Olympic Fixings – Fix4Fire Screws in softer substrates • DeWalt – Wall Dog |
IMP05.0 |  |
| 5.5mm | 46mm | 100mm | • Red plugs in softer substrates • Olympic Fixings – Fix4Fire Screws in harder substrates |
IMP05.5 |  |
| 6.0mm | 46mm | 100mm | • Red plugs in harder substrates • D-Line – Stag Clip • Linian – Fire Clip • Fischer DuoPower 6×30 |
IMP06.0 |  |
| 7.0mm | 56mm | 110mm | • Brown plugs | IMP07.0 |  |
| 8.0mm | 56mm | 110mm | • Fischer DuoPower 8×40 | IMP08.0 |  |
Tech-Tip
Always keep the drill bit shank properly lubricated with a machine manufacturers recommended grease
Recommended Speed
Recommended speed for SDS Plus is largely governed by the power tool itself. This is because the product is designed to be used in power tools where in the majority of cases there is no facility to regulate the speed (i.e. SDS Plus machines). If used in a machine where speed regulation is possible, a general recommendation is the larger diameter of the drill bit being used, the slower the speed.

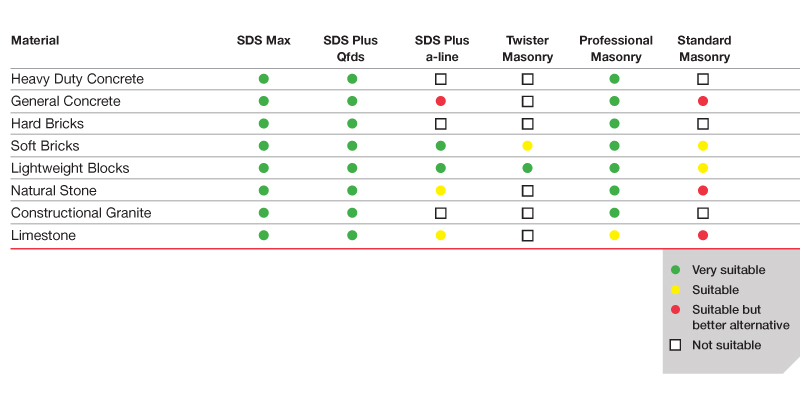

Material Chart
