The smoothest and fastest wood drill bits available

The WoodBeavers quad flute and quad cutting head design sets it apart from other wood drill bits available on the market and gives a drilling performance that can’t be beaten.




  • ¼” Quick-Change shank* for added convenience and rapid diameter tool change.

  • Up to 25mm can be used within an impact driver.

  • Short lightweight body construction for maximum holes per charge in cordless machines

  • Four deep auger style flutes for rapid chip evacuation and faster drilling speeds

  • Four precision ground cutting teeth for extreme drilling comfort and balance

  • Purpose designed head geometry for ultra clean breakthrough

  • Available individually or within sets


*Apart from 32mm which has a 7/16” shank & can’t be used in impact drivers.


Stubby Length


Available in standard 165mm or stubby 120mm length. The compact stubby design is perfect for inter-joist drilling, working in tight spaces and for users with larger drilling machines.


WoodBeaver can be used in:




  • Hardwoods

  • Softwoods

  • Veneered chipboard

  • Plywood

  • Chipboard




WoodBeaver

Diameter Size mm Overall Length mm Working Length mm Part Number
10 165 125 WWB10.0T
12 165 125 WWB12.0T
13 165 125 WWB13.0T
16 165 125 WWB16.0T
18 165 125 WWB18.0T
19 165 125 WWB19.0T
20 165 125 WWB20.0T
22 165 125 WWB22.0T
25 165 125 WWB25.0T
32 165 125 WWB32.0T

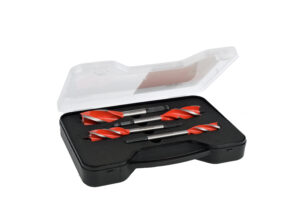

4 Piece WoodBeaver Set 1 X 16 / 20 / 25 / 32mm WWB4PCSET

Stubby WoodBeaver

Diameter Size mm Overall Length mm Working Length mm Part Number
16 120 80 WWBST16
20 120 80 WWBST20
22 120 80 WWBST22
25 120 80 WWBST25
32 120 80 WWBST32

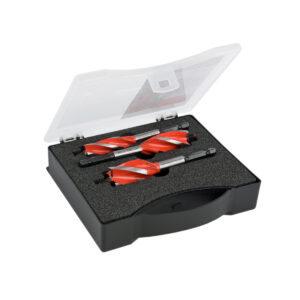

3 Piece Stubby

WoodBeaver Set

1 X 16 / 20 / 25mm WWB3PCSET120

WoodBeaver Accessories

Description Drive Type Length
mm
Internal
mm
Technical
Product Detail
Part Number
 Quick-Change
SDS Plus to 1/4″ Adaptor
SDS Plus 60 1/4″ For Sizes
10 – 25mm
SDS1/4WB055


Quick-Change 1/4″
Extension Rod

*Twister impact rated
for impact drivers

1/4″ Hexagon 230 1/4″ For Sizes
10 – 25mm
WWB1/4HEX250

Tech-Tip

  • When being used in a cordless drill, the larger WoodBeavers should be used on the slowest speed range setting. The slowest speed range gives the higher torque required. Using on higher speeds only provides a low torque which could stall the machine out

Material Chart

Machine Recommendations

Click on the link below to view the technical data sheet
