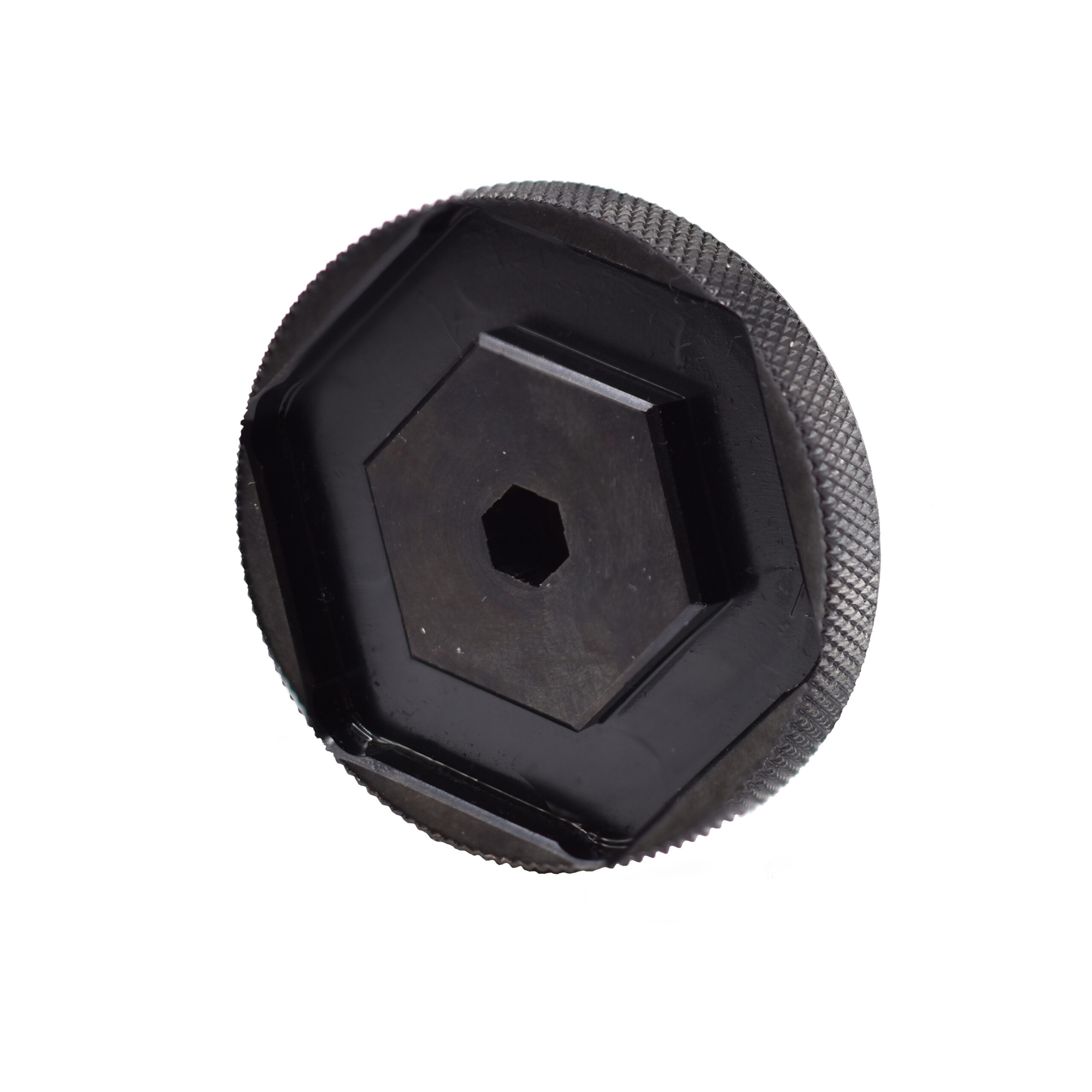

- Hexagonal recess positively locates on the bush for a secure fit and reduced slippage.

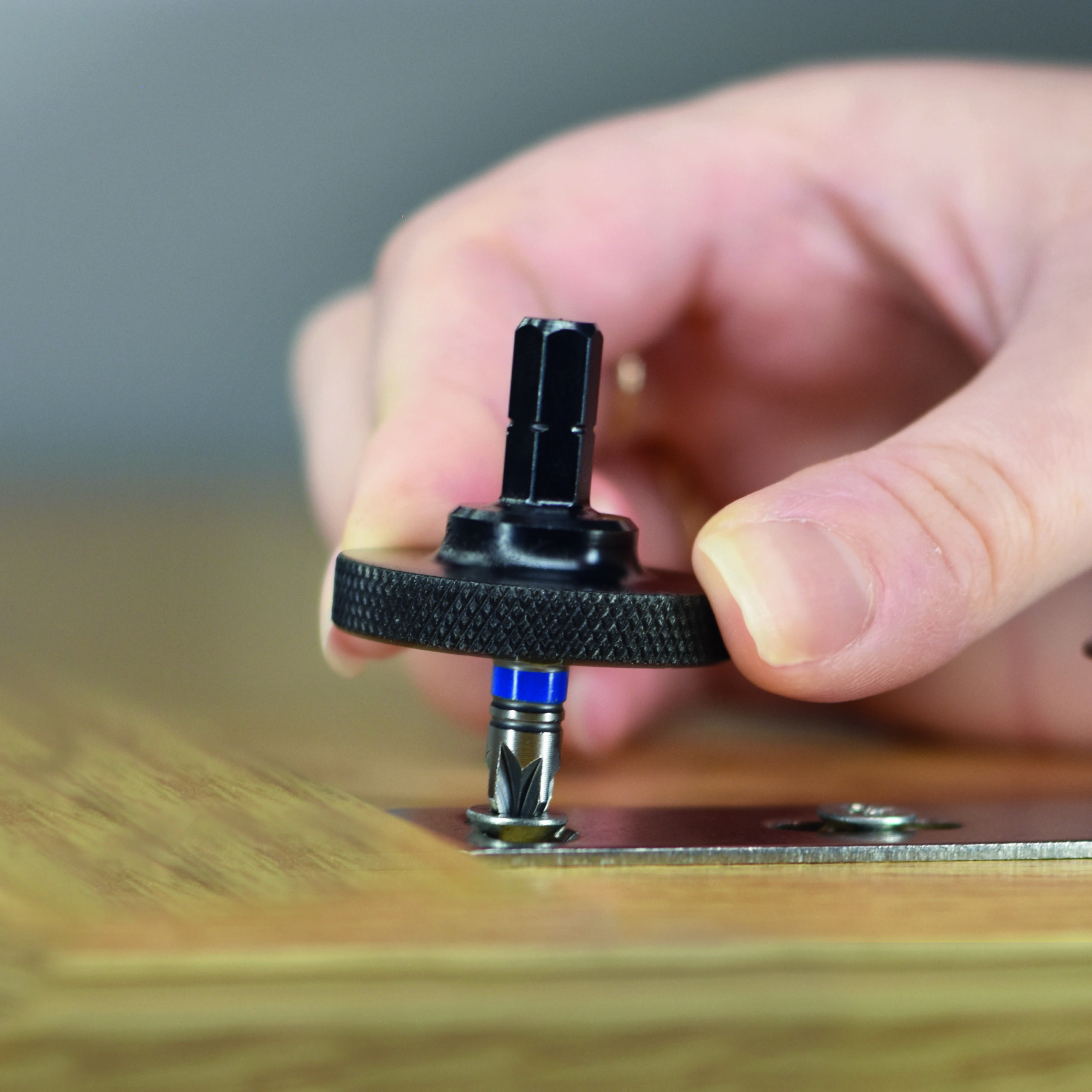

- MAGNETISED INTERNAL HEX for screwdriver bits.
- KNURLED OUTER EDGE for hand tightening in confined spaces.
- Ideal for use with a ratchet for faster and easier tightening.
- Compact low profile is perfect for working in tight areas and awkward access installations.
- 1/4" Hexagon shank in accordance with ISO 1173:2001(e) allows use in bit holders / ratchets etc.
- 1 piece integrated system made in Sheffield using high quality alloy for durability.
- Patent pending.
- Made in Britain.

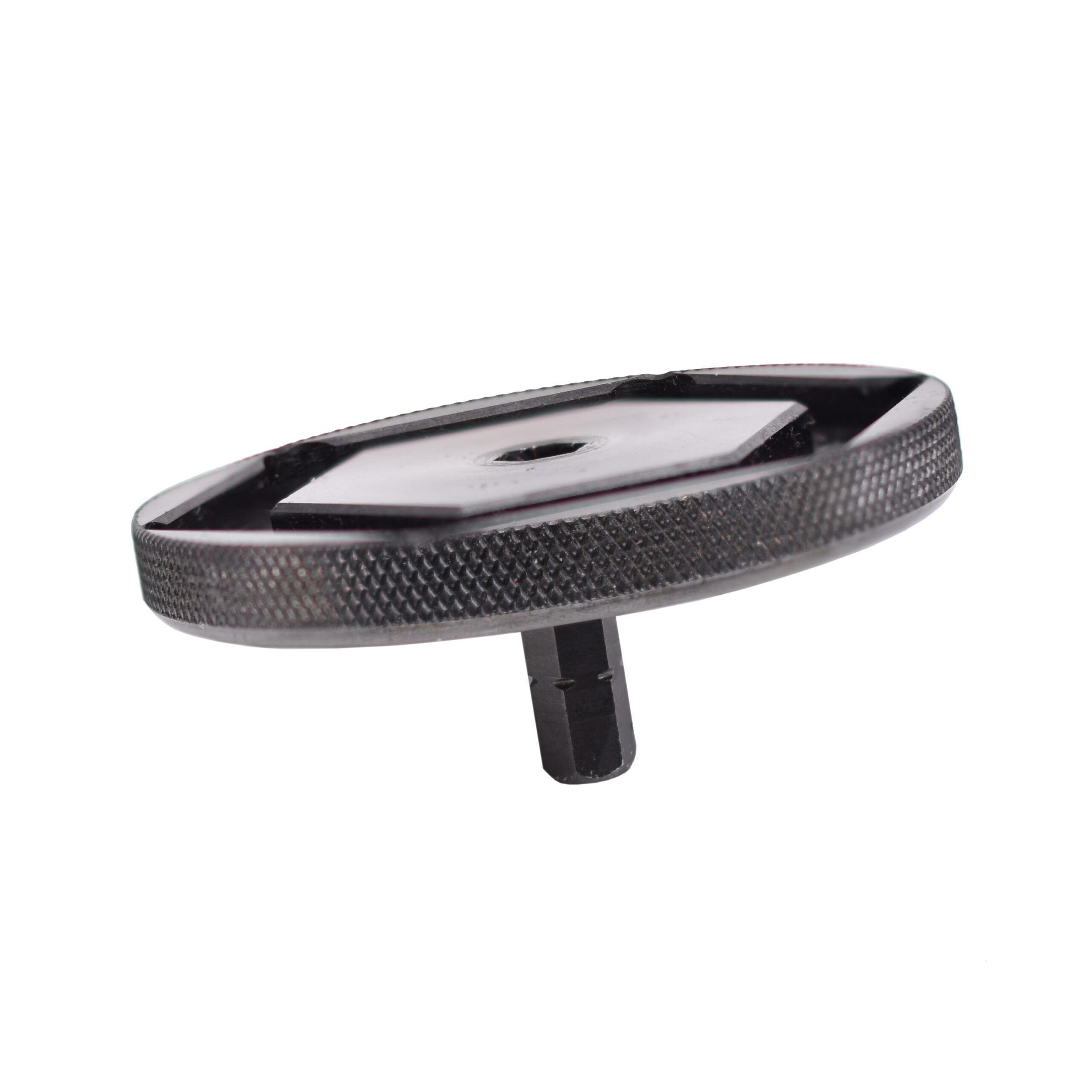

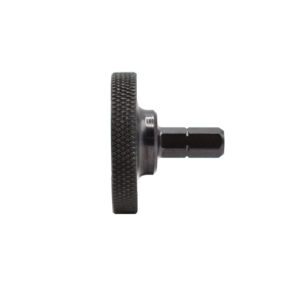

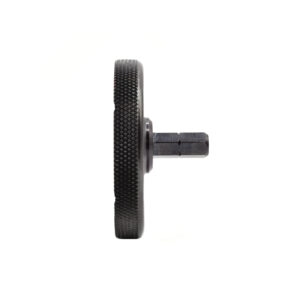

Brocket – Conduit Bush Socket
Buy Now
Click here to find your local stockist.
The New and Improved Game Changing Socket
| Description | Diameter | Length | Part Number | |
| 20mm Brocket – Conduit Bush Socket | 25mm – fits most 20mm bushes | 20.5mm | TBS20 |  |
| 25mm Brocket – Conduit Bush Socket | 32mm – fits most 25mm bushes | 20.5mm | TBS25 | |
| 32mm Brocket – Conduit Bush Socket | 39mm – fits most 32mm bushes | 20.5mm | TBS32 | |
| 38mm Brocket – Conduit Bush Socket | fits most 40mm bushes | 20.5mm | TBS38 |  |
| 50mm Brocket – Conduit Bush Socket | 62mm – fits most 32mm bushes | 20.5mm | TBS50 |  |
| Description | Content | Part Number | |
| 5 Piece Bush Installation Set | 1 x 20 / 25mm Acceler8%
1 x 20 / 25mm Brocket 1 x AAA Ratchet |
TBSSH5PCSET |  |
| 4 Piece Brocket Super Set | 1 x AAA Ratchet
1 x 20 / 25mm / 32mm Brocket |
TBS4PCSSET |  |

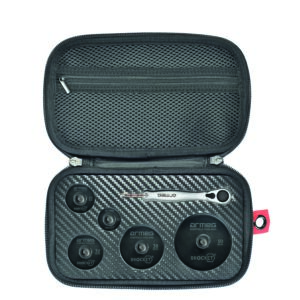

| 6pc Brocket Super-Set All 5 Brocket sizes included | 20mm, 25mm, 32mm, 38mm/1.5” & 50mm/2.0 | TBS6PCSSET |  |
| 11pc Brocket & Acceler8% Super-Set All 5 Sizes included | 20mm, 25mm, 32mm, 38mm/1.5” & 50mm/2.0” with 5 corresponding Acceler8% Sheet Steel Holesaw Sizes and AAA Mini Ratchet | TBSSH11PCSSET |  |
User guidelines
Brocket
1/4” Hexagon shank in accordance with ISO 1173:2001(e) allows use in bit holders / ratchets.
Acceler8% Sheet Steel Holesaw
- Observe speed recommendation chart
- Use of an appropriate lubricant will increase tool life – try Armeg Cutting Compound (ECC002)
- Remove material “slug” before commencing subsequent holes
- After pilot drill penetration, be careful not to “bang” the holesaw onto the surface. This could damage or break the cutting teeth
- When attaching a replacement adaptor / pilot drill, care should be taken to line up the grubscrew flat on the adaptor with the grubscrew hole in the holesaw
- Periodically check the grubscrew is tight, especially when being used in an impact driver
- Maximum recommended material thickness – 1.6mm. Drilling thicker than recommended material causes “clogging” and leads to premature wear or even tool breakage
