A range of extensions and SDS Plus Adaptors

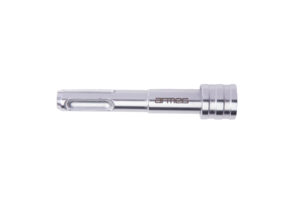

Quick-Change SDS Plus to ¼” Adaptor

  • Perfect for converting Twister impact rated accessories to SDS Plus compatibility

  • High Alloy content steel is precision heat treated for extreme durability

  • Quick-change easy grip collar provides rapid tool interchanges

  • Secure lock and retention drive design is compatible with all ¼” hex shank accessories

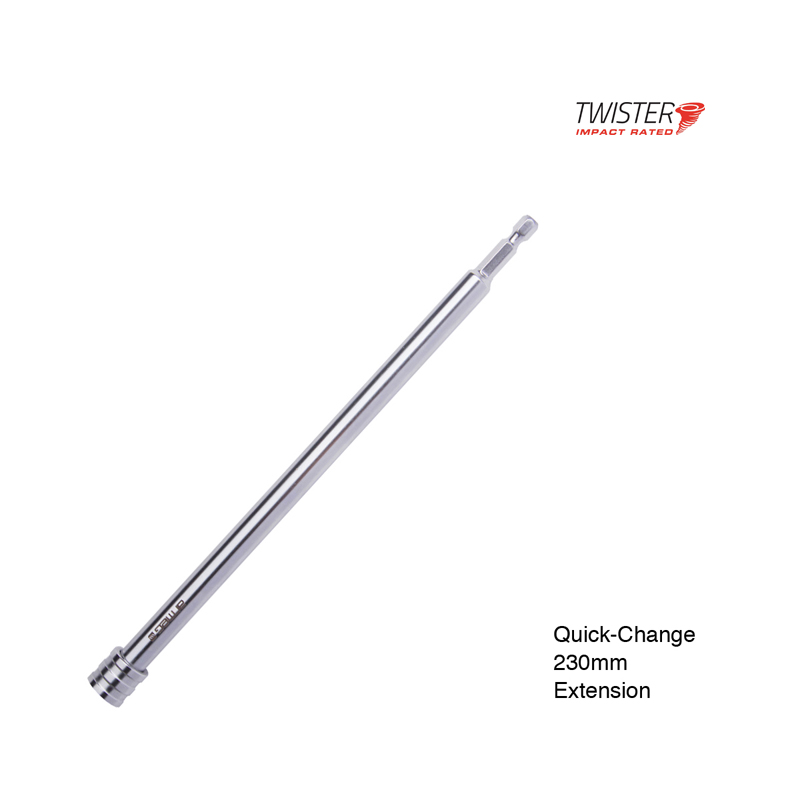

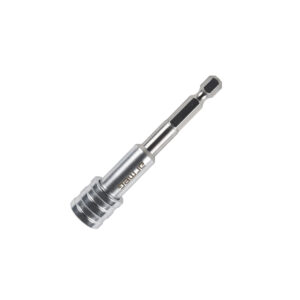

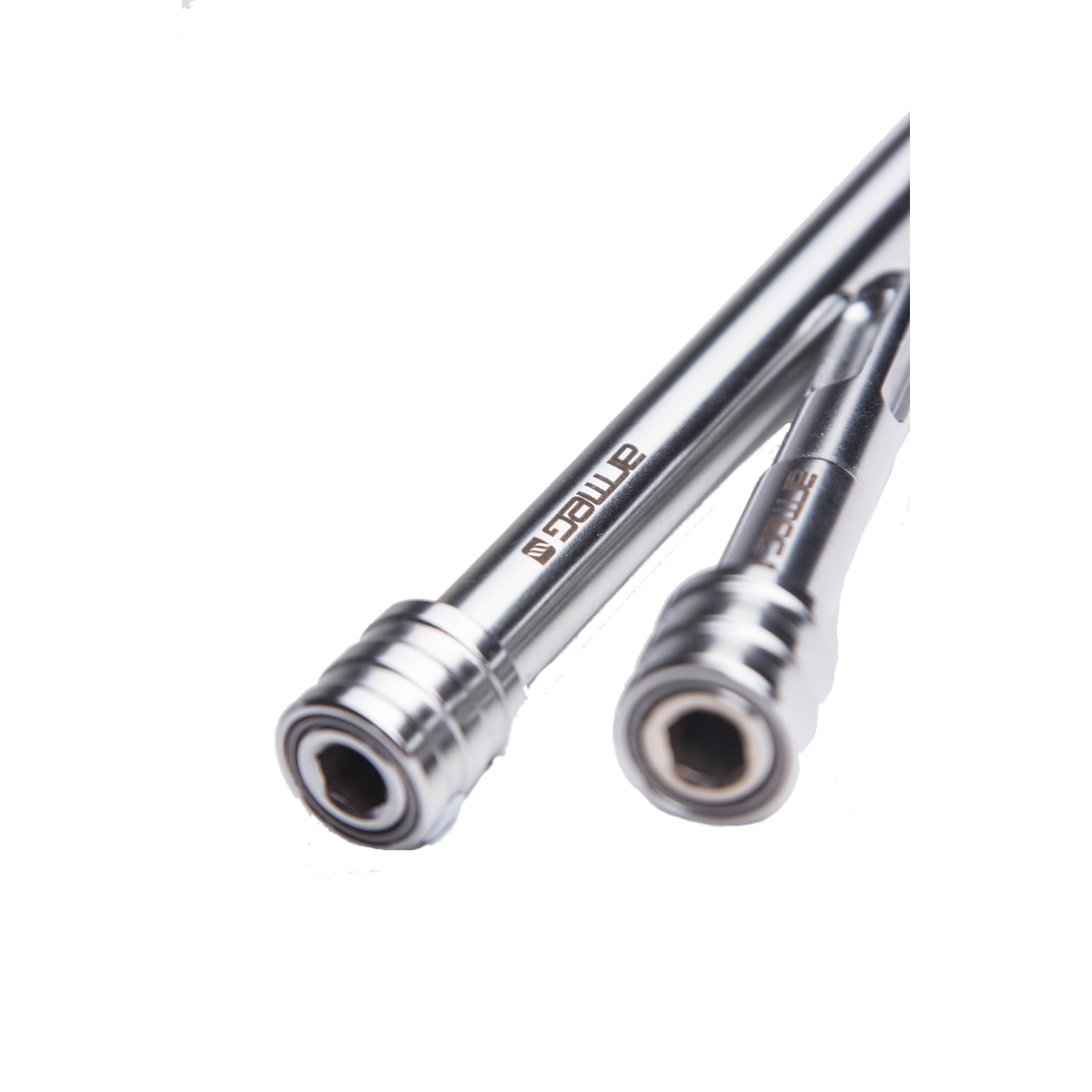

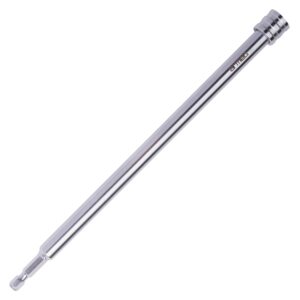

Quick-Change ¼” Extension Rod

  • Available in 75mm & 230mm length

  • Twister impact rated for use in impact driver

  • High Alloy content steel is precision heat treated providing a durable tool which can withstand impacts and shocks

  • Secure lock and retention drive design is compatible with all ¼” hex shank accessories

  • Quick-change easy grip collar provides rapid tool interchange

  • ¼” quick-change adaptor shank is designed to ISO 1173-2001 standard

  • Can also be used in most hand held machines with 3 jaw chucks for machine versatility




Description Drive Type Length mm Internal mm Technical
Product Detail		 Part Number
Quick-Change SDS
Plus to 1/4″ Adaptor		 SDS Plus 80 1/4″ For Sizes
10 – 25mm		 SDS1/4WB055
Quick-Change 1/4″ Extension Rod

*Twister impact rated
for impact drivers

 1/4″ Hexagon 75 1/4″ For Sizes
10 – 25mm		 WWB1/4HEX75
Quick-Change 1/4″ Extension Rod

*Twister impact rated
for impact drivers

 1/4″ Hexagon 230 1/4″ For Sizes
10 – 25mm		 WWB1/4HEX250



User Instructions

Quick-Change SDS Plus to ¼” Adaptor

  • Pull the collar back to insert and release accessories. The adaptor must be pushed fully into the nosepiece of the machine
  • Ensure accessory is positively located before commencing drilling
  • Ensure accessory is cutting efficiently before applying pressure to minimise ‘wobble’ and potential breakage
  • Do not use hammer action
  • Don’t allow the quick-change mechanism to contact the surface of the material whilst drilling
  • Please note, SDS machines may not run at the correct recommended speed for the accessory – running at the wrong speeds can cause premature wear

Quick-Change ¼” Extension Rod

  • Pull the collar back to insert and release accessories. The adaptor must be pushed fully into the nosepiece of the machine
  • Ensure accessory is positively located before commencing drilling
  • Ensure accessory is cutting efficiently before applying pressure to minimise ‘wobble’ and potential breakage
  • Do not use hammer action
  • Don’t allow the quick-change mechanism to contact the surface of the material whilst drilling
  • Do not use within an impact driver if using a non-impact rated accessory
