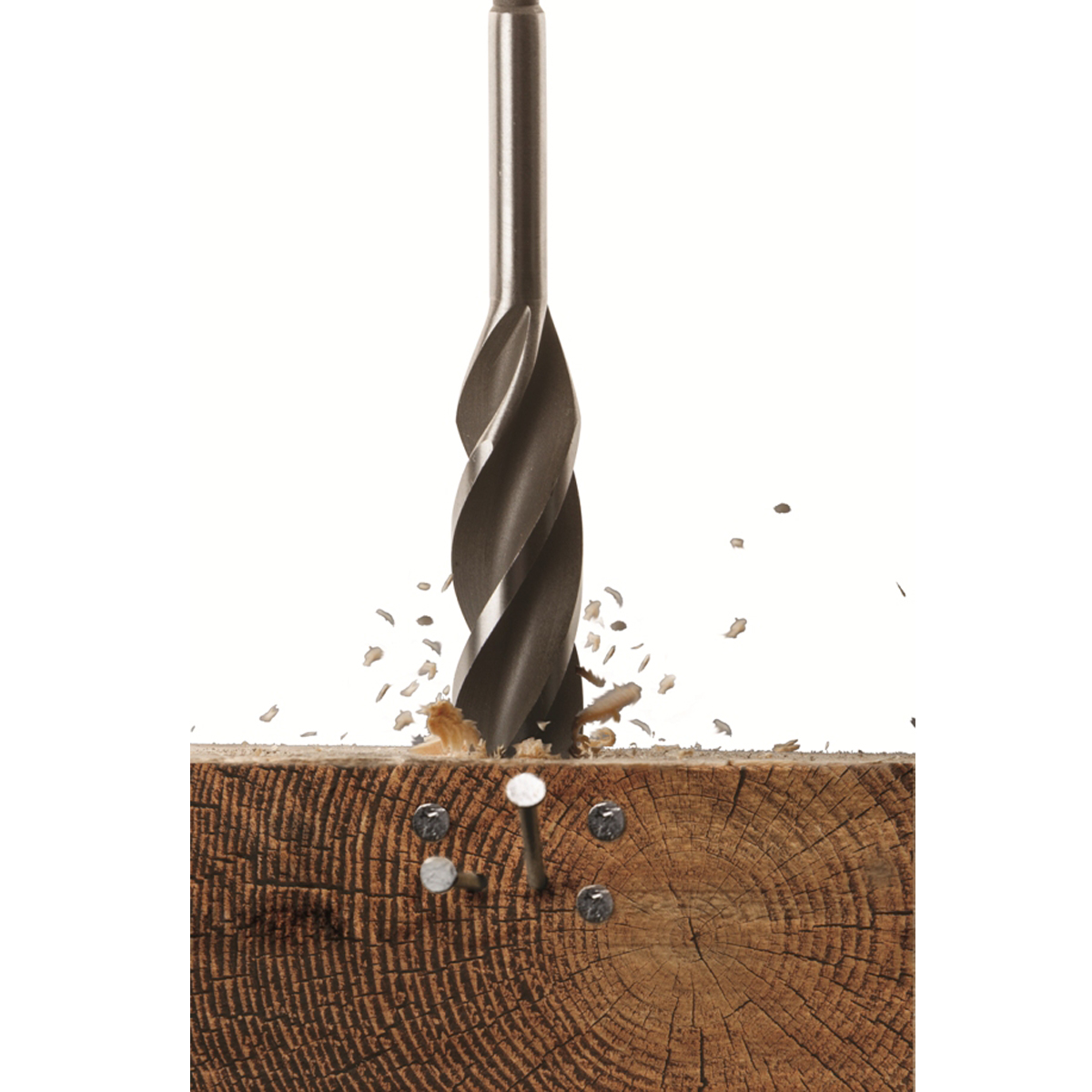

The solution to drilling in Nail Embedded Wood
Designed with all the benefits of the original WoodBeaver, the Nail-Proof also features a stronger cutting head, allowing it to provide effective drilling even after Nail Strikes. The robust profile of the four precision ground cutting teeth provides extreme resistance to hard objects whilst the HSS cutting head increases durability in tough materials to give longer tool life.
- ¼” quick-change shank* for added convenience and rapid diameter tool change
- Up to 25mm can be used within an impact driver
- Four deep auger style flutes for rapid chip evacuation and faster drilling speeds
- Four precision ground cutting teeth for extreme drilling comfort and balance
- Robust cutting tooth profile provides extreme resistance to hard objects such as nails
- High Speed Steel cutting head increases durability in tough materials for longer life
- Available individually or in a 4 piece stubby set
*Apart from 32mm which has a 7/16” shank & can’t be used in impact drivers

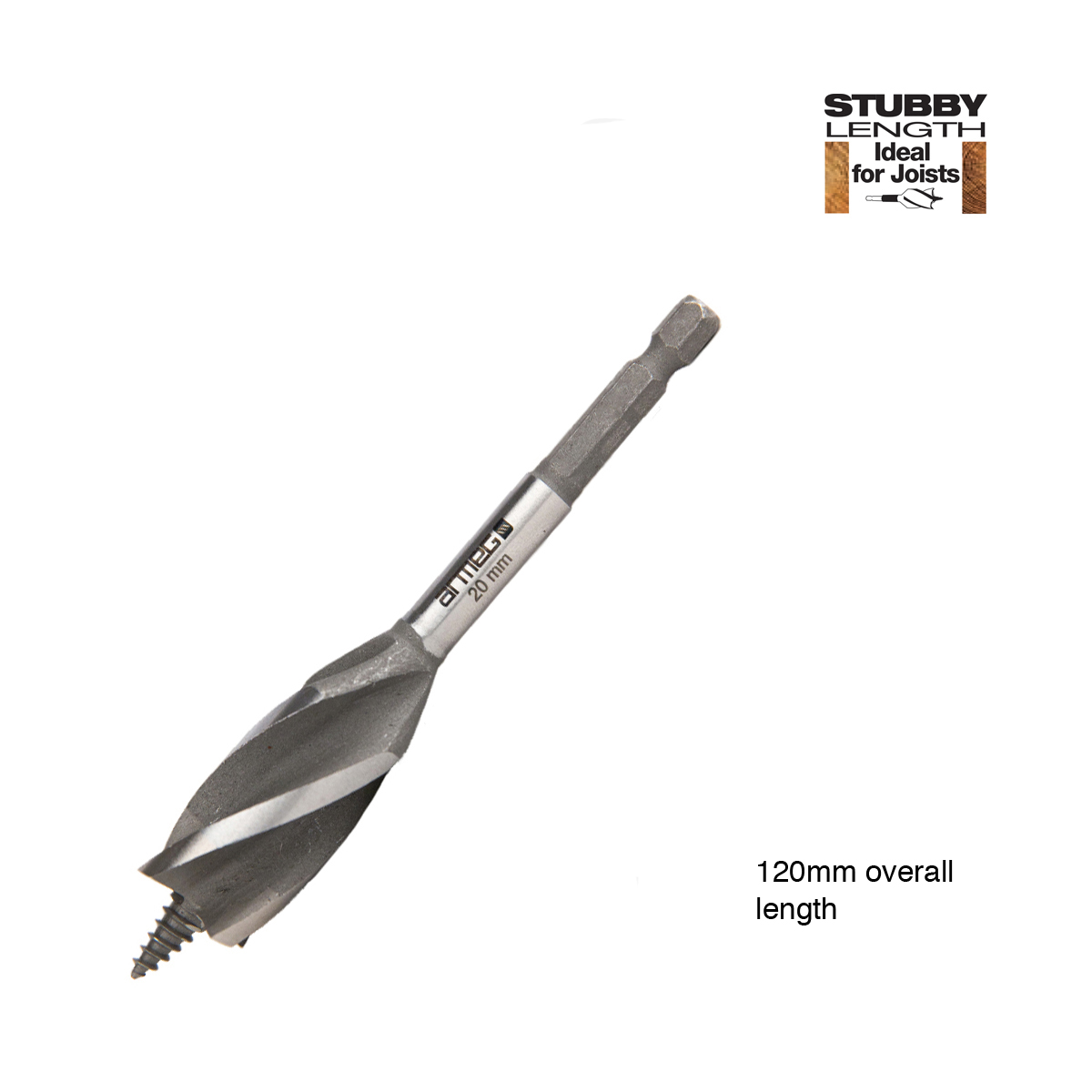

Nail-Proof Stubby Length
Available in standard 165mm or stubby 120mm length. The compact stubby design is perfect for inter-joist drilling, working in tight spaces and for users with larger drilling machines.
Nail-Proof WoodBeaver can be used in:
- Nail embedded wood
- Softwoods
- Hardwoods
- Veneered chipboard
- Plywood
- Chipboard

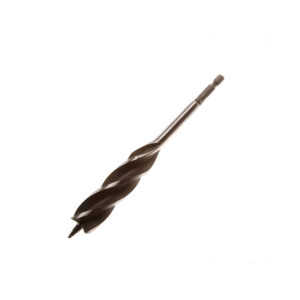

Nail-Proof WoodBeaver
| Diameter Size mm |
Overall Length mm |
Working Length mm |
Part Number |
|
| 16 |
165 |
125 |
WWBNP16 |
 |
| 20 |
165 |
125 |
WWBNP20 |
| 22 |
165 |
125 |
WWBNP22 |
| 25 |
165 |
125 |
WWBNP25 |
| 32 |
165 |
125 |
WWBNP32 |

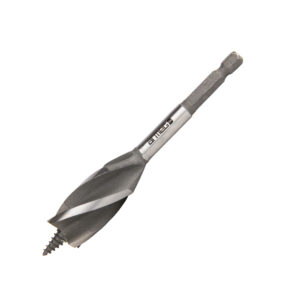

Nail-Proof Stubby WoodBeaver
| Diameter Size mm |
Overall Length mm |
Working Length mm |
Part Number |
|
| 16 |
120 |
80 |
WWBNPST16 |
 |
| 20 |
120 |
80 |
WWBNPST20 |
| 22 |
120 |
80 |
WWBNPST22 |
| 25 |
120 |
80 |
WWBNPST25 |
| 32 |
120 |
80 |
WWBNPST32 |

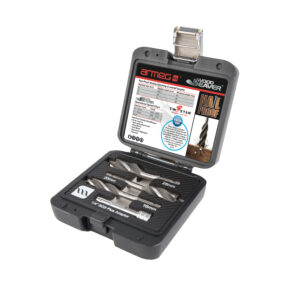

4 Piece Nail-Proof Stubby Set
| Description |
Set Contents |
Part Number |
|
| 4 Piece Nail-Proof
Stubby Set |
1 X 16 / 20 / 25mm
1 X Quick-Change SDS Plus to 1/4″ Adaptor |
WWBNP4PCSET |
 |
WoodBeaver Accessories
| Description |
Drive Type |
Length
mm |
Internal
mm |
Technical
Product Detail |
Part Number |
|

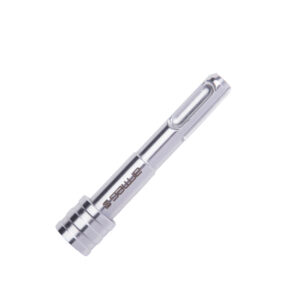

Quick-Change
SDS Plus to 1/4″ Adaptor |
SDS Plus |
60 |
1/4″ |
For Sizes
10 – 25mm |
SDS1/4WB055 |
 |
|

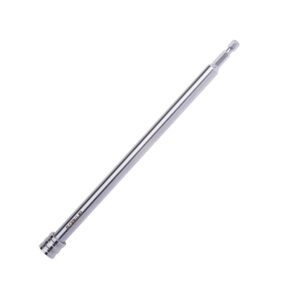

Quick-Change 1/4″
Extension Rod
*Twister impact rated
for impact drivers |
1/4″ Hexagon |
230 |
1/4″ |
For Sizes
10 – 25mm |
WWB1/4HEX250 |
 |
Tech-Tips
- Up to 25mm diameter can be used within an impact driver. This gives the advantages of one-handed operation and improved access in tight spaces
- When encountering a metal object, if possible reposition the drilled hole. Continued drilling with the Nail-Proof WoodBeaver will reduce it’s working life
- When being used in a cordless drill, the larger WoodBeavers should be used on the slowest speed range setting. The slowest speed range gives the higher torque required. Using on higher speeds only provides a low torque which could stall the machine out
- When encountering a nail etc. using an impact driver, it is important not to keep the power tool engaged onto a stationary drill bit. It is important to keep the drill bit spinning so as to actually cut through the nail. This can involve stopping and/or reversing the drill bit periodically. If this is carried out, then it should allow the product to successfully cut through the nail.
If the trigger is kept pressed whilst the drill bit is stationary, something has got to give due to the nature of the power tool. On rare occasions, it is the cutting edge.
Material Chart
Machine Recommendations
Click on the link below to view the technical data sheet
